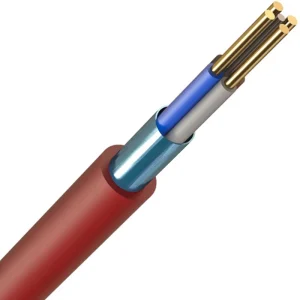

Prysmian FP200G4C 2.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor material Copper Conductor category Class 1 = solid Sheath colour Red Conductor surface Bare Core insulation material Polyolefin Sheath material Polyolefin Core identification Colour Nominal cross sectional area of conductor 2.5 mm² Outer diameter approx. 11.9 mm Nominal voltage U 500 V Number of cores 4 Conductor Diameter 2.5 mm Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Screen Yes Drain wire Yes Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
