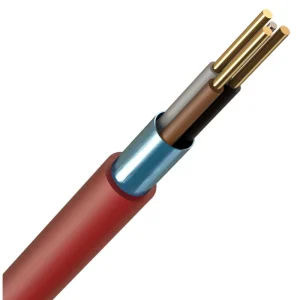

Prysmian FP200G3C 1.5mm² Red Fire Performance Soft Skin Standard Cable 3-Core

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Conductor material Copper Sheath colour Red Conductor surface Bare Conductor category Class 1 = solid Core insulation material Polyolefin Sheath material Polyolefin Core identification Colour Nominal cross sectional area of conductor 1.5 mm² Conductor Diameter 1.5 mm Nominal voltage U 500 V Number of cores 3 Max. conductor temperature 70 °C Nominal voltage U0 300 V Outer diameter approx. 8.5 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes · Technical Data Sheet – Click to Download
