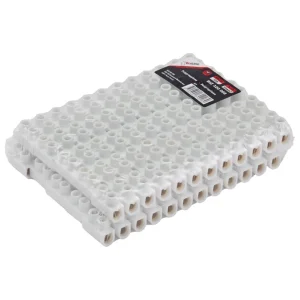

Bizline Terminal Blocks 2.5 mm² White Polypropylene (x 10)

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Colour White Material insulation body Thermoplastic Type of electrical connection 1 Screw connection Width – mm Type of electrical connection 2 Screw connection Drill hole distance centrically 7.9 mm Number of clamp positions per pole 2 Number of poles 12 Rated voltage 400 V Height – mm Depth – mm Rated current In 24 A Connectable conductor cross section fine-strand with cable end sleeve 0 – 2.5 mm² Operating temperature -25 – 50 °C Connectable conductor cross section fine-strand without cable end sleeve 0 – 4 mm² Connectable conductor cross section solid-core 0 – 4 mm² Connectable conductor cross section multi-wired 0 – 4 mm² Halogen free No Explosion-tested version ‘Ex e’ No Closing plate required No Transparent No · Technical Data Sheet – Click to Download
