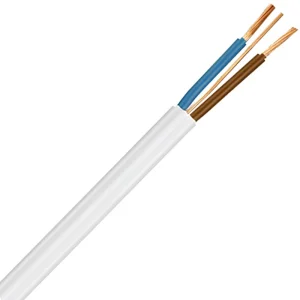

Commodity 6242BH 1.5mm White Basec Cable 2-Core Twin & Earth

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Protective barrier None Core colour Several Conductor material Copper Conductor category Class 1 = solid Conductor surface Bare Sheath colour White Core insulation material Polyolefin Core identification Colour Sheath material Polyolefin Max. conductor temperature 90 °C Number of cores 2 Nominal cross sectional area of conductor 1.5 mm² Conductor Diameter 1.5 mm Nominal voltage U 500 V Nominal voltage U0 300 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Twisted cores No · Technical Data Sheet – Click to Download
