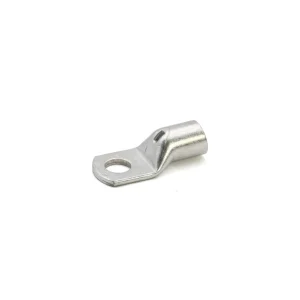

Cembre 70mm² Copper lug flexible M8 [Pack of 50]

Brand: CembreProduct code: A17-M8Go Magpie Ref: 5060062304451

70mm² Copper tube crimping lug for extra flexible copper conductor M8 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 17 mm · · Diameter: 13 mm · · Length Min Max: 47 mm · · Width: 23 mm

£3.11inc VAT£2.59 ex VAT
In stock — 49 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper AWG size 00 Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 8 With sight-hole Yes Nominal cross section 70 mm² Slender flange model No Insulated No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573507
