Cable

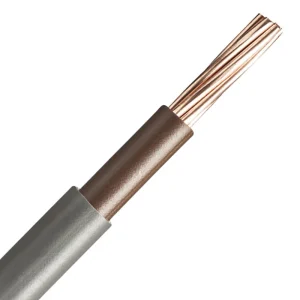

Commodity Cables 6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails

Brand: Commodity CablesProduct code: 6181YH-16.0-GRYBRN100 -RXGo Magpie Ref: 5060062300466

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6181Y16.0 is a Harmonised Circular Single Core Cable suitable for surface wiring installation. · · · BS6004 PVC single core cable Double Insulated · · Used in light industrial and domestic wiring · · Solid conductors 1.0mm – 2.5mm · · Stranded conductors 4.0mm -35.0mm · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004

£524.04inc VAT£436.70 ex VAT
In stock — 700 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Sheath colour Grey Protective barrier None Conductor category Class 2 = stranded Sheath material Polyvinyl chloride (PVC) Conductor material Copper Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Conductor Diameter 16 mm Core identification Colour Nominal cross sectional area of conductor 16 mm² Nominal voltage U 500 V Number of cores 1 Nominal voltage U0 300 V Max. conductor temperature 70 °C Outer diameter approx. 9 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Oil resistant according to IEC 60811-404 No Screen No Drain wire No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
