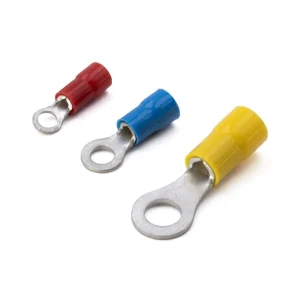

Cembre 4mm²-6mm² ring terminal M5 yellow [Pack of 100]

Brand: CembreProduct code: GF-M5Go Magpie Ref: 5060062333465

4mm²-6mm² PVC insulated ring terminal M5 stud yellow · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Diameter: 6.7 mm · · Length Min Max: 26.8 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

£0.16inc VAT£0.13 ex VAT
In stock — 400 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Yellow Insulation Polyvinyl chloride (PVC) Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 5 Max. current (Imax) – A Nominal cross section 4 – 6 mm² Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes Suitable for insulated varnish No Suitable for flat conductors No Suitable for fine strand conductors No Useful for stranded conductors Yes Suitable for solid cores No For pull protected connections No Reel packaging No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
