Cable & Cable Management

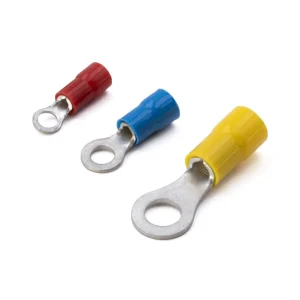

Cembre 4mm²-6mm² ring terminal M10 yellow [Pack of 100]

Brand: CembreProduct code: GF-M10Go Magpie Ref: 5060062304806

4mm²-6mm² PVC insulated ring terminal M10 stud yellow · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Diameter: 6.7 mm · · Length Min Max: 33.1 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

£0.25inc VAT£0.21 ex VAT
In stock — 200 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Material Copper Colour insulation Yellow Insulation Polyvinyl chloride (PVC) Flange shape Ring shape Surface protection Tinned Max. current (Imax) – A Bolt dimension (metric) 10 Suitable for high temperatures (to 650 °C) No Nominal cross section 4 – 6 mm² Suitable for round conductors Yes Suitable for insulated varnish No Suitable for fine strand conductors No Suitable for flat conductors No Useful for stranded conductors Yes Suitable for solid cores No Reel packaging No For pull protected connections No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
